Usage

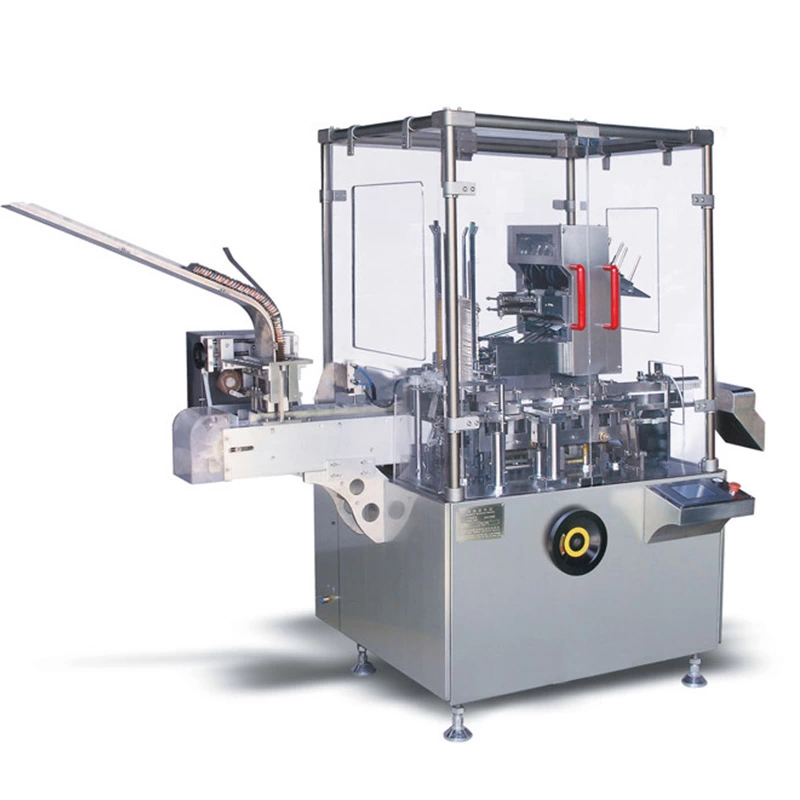

Automatic cartoner machine is new model developing base on integrated domestic and foreign advance technology .It is high technology product incorporates pneumatic-electro-mechanic which improve by a large on performance of equipment and working efficiency, realize encasing fast, keep running steady and reliable when fast running.
Automatic cartoner machine is suitable for automatic feeding product of multi-variety multi-specifications blister into carton. Adjust automatic feeding structure conveniently,setup quantity of blisters on touch screen randomly.On line product feeding and detecting, leaflet fold(1-4folds) and feeding,leaflet detecting,canton opening and forming,products and leaflet pushing into carton, printing batch number,sealing carton with tuck-in orhot melt glue. Automatically reject lacking of leaflet or prodcut and finished product out.
Applications
Is suitable for ALU-PVC blister, ALU-ALU blister and similar product.
Features
International famous brand of electrical component such as PLC touch screen, frequency inverters, etc.
Adopt human-machine operation system.
Automatically stop when machine is overload.
Automatically reject lacking of package product and leaflet.
Automatically display trouble, Alarm and count finished products.I Stable performance,operation is easy.
| Main technical parameters | JDZ-120 Ⅲ (Vertical) | |
| Encasing speed | 30-120 (Cartons/min) | |
| Carton | Quality requirement | 250-350g/㎡ Base on carton size |
| Dimension range (L x W x H) | (65-125)mm x(30-85)mm x (12-50)mm | |
| Leaflet | Quality requirement | 60-70 g/㎡ |
| Unfolded leaflet specification | (80-250)mm x (90-170)mm | |
| Fold range | 1-4 Fold | |
| Compressed air | Working pressure | ≥0.6Mpa |
| Air consumption | 120-160 L/min | |
| Power supply | 220V 50hz | |
| Motor power | 0.75Kw | |
| Machine dimension (L x W x H) | 2150mm x 1140mm x 1800mm | |
| Machine weight | 1100kg | |
