Usage

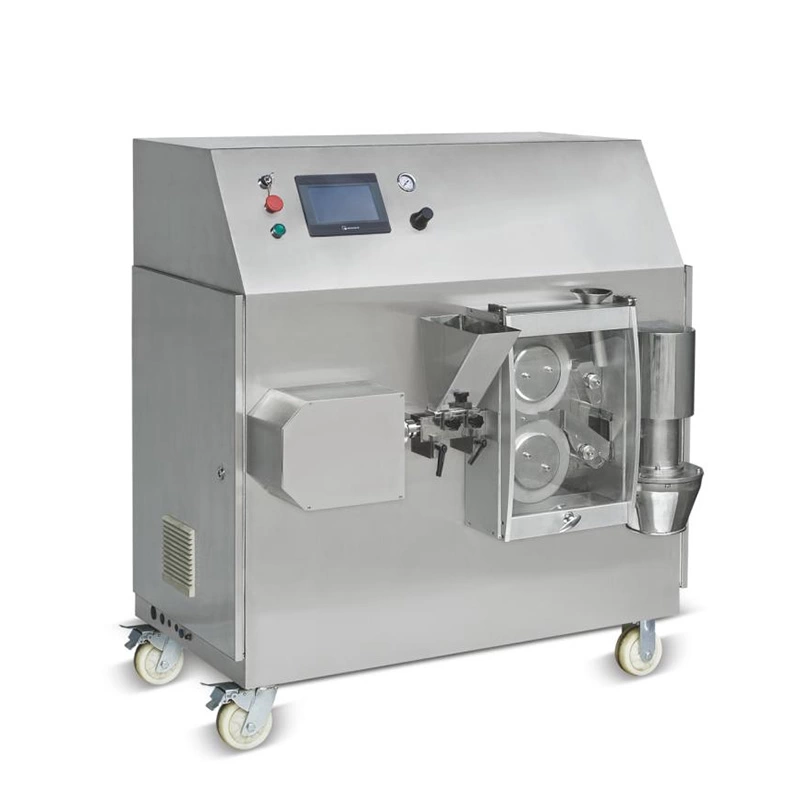

The GL-5 Granulating Machine is the most advanced home-made one in the world , which is designed and developed on the basis of GMP concepts and characteristics of Chinese patent medicines and biochemical medicines. Granulating machine widely applied for granulation in such industries as pharmacy, food and chemical engineering, which is especially applicable for granulation of materials vulnerable to being decomposed and ineffective or agglomerated when contacting wet and heat. The grains it produced are directly used for granule packets, tablets and filled capsules.
| Item | GL-5B | GL-5C | |
| Tabletting capacity | Kg/h | 1~5 | 1~5 |
| Granulation capacity | Kg/h | 0.5~3 | 0.5~3 |
| Pinch roller rotation speed | r.p.m | 3~20 | 3~20 |
| Pinch roller rotation speed | r.p.m | 10~50 | 10~50 |
| Straightening rotation speed | r.p.m | 200~700 | 200~700 |
| Grain specification | Φ/ mm | 10~80 / 2~0.18 | 10~80 / 2~0.18 |
| Pinch roller pressure | KN | 68 | 68 |
| Air source pressure | Mpa | 0.4~0.7 | 0.4~0.7 |
| Air consumption | m³/ min | 0.05 | 0.05 |
| Main machine power | KW | 2.5 | 2.5 |
| Auxiliary machine power | KW | / | 0.75 |
| Main machine weight | Kg | 800 | 800 |
| Overall dimension | LxWxH mm | 1200x800x1300 |
1200x800x1300 |
